Rain Harvester Part 4 of 4


Every part of our rain harvester works on nothing more than gravity. It is a system that utilizes ten steel barrels; nine hold water and one creates the pressure that fills those nine barrels. I’ll break down the whole shebang into two parts (each with its own subsequent parts): first I will go through the process of filling and second I will go over, yep you got it, how it drains.

The Big Fill


The amount of roof space we’re using is only about 360 square feet. We have access to more, but haven’t gotten around to running the necessary downspouts. Obviously the roof is what collects the water, so the more that is utilized, the less rain that will be needed to fill the barrels or the more barrels that can be reasonably filled. We have one downspout that empties into what we call the lead or filler barrel. Because a roof can collect a lot debris that eventually washes off when it rains, it is always a good idea to include some kind of filter. Our filter is quite simple, it’s a piece of chicken wire and window screen fastened over the top of the filler barrel with some wire.

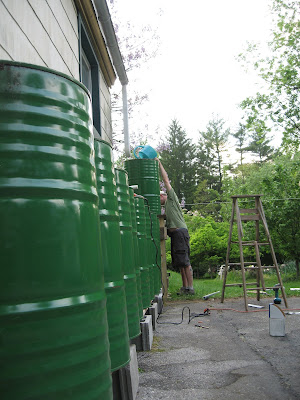

As you can see, the filler barrel is propped above the other barrels on a tall wooden tower. The reason for the rise in elevation is to create added downward pressure in order fill (hence “filler” barrel) the storage barrels. The added pressure is required because the water fills the from the bottom up. The reason the barrels fill from the bottom is because that is also from where they drain (Ahh, gravity).

The draining part of the equation works fantastically. The filling part, hmm, well let’s just say it manages to do the job. If neither Meg nor I have mentioned this yet, the harvester was designed with a fair mixture of solid math and good faith. I am learning at an early age that good faith can leave you with your pants around your ankles. The filler works great anytime that there is a good slow and steady rain or less, but if there is a thick and heavy downpour, then the pressure isn’t strong enough to keep up and we end up losing water from the tom of the first storage barrel. To combat this we may run an overflow line to the end barrel to even things out.

By the way, the reason we didn’t top-feed the storage barrels is because we wanted to avoid running two whole sets of pipe (top and bottom) when we weren’t even sure how well it was going to work. The line running along the bottom of the barrels has to be there in order to drain properly. Also, if you build a closed-top system like ours, which means you can't get into the barrels, be sure to drill a small hole into the top to relieve any counterproductive air pressure and promote easy filling and draining.


Draining

When all of the storage barrels are full we have 500 gallons of water trying to rush down and out of a straight line of ½ inch PVC, which is about 8 inches off the ground. The simple pressure from the barrels alone produces a steady stream of water, but the additional downward grade of about five feet to the garden give us all the water pressure we need.

It’s important that the drainage line connecting all your barrels runs in a straight line. Just like the gutters and downspouts on your house, any directional changes will lower the water's pressure and velocity. Think of it this way, if you're riding your bike down a steep hill and there is a turn up ahead, what must you do? Oh yeah, slow down or die.

It's handy if the spigot has a splitter. A splitter allows you have one hose running to the garden and a second to fill watering cans, put out fires, rescue small sea creatures, and any other good deed outside of the garden.

If you have a pond that is relatively close and downhill from your house or barn, you can build this system with a thicker drainpipe and run an old fire hose to fill it up. We are going to do something like this for our pool. When it rains, we’ll just open the rain harvester drain and let it all run in.

Care

Taking care of this thing is pretty simple. Always make sure that the gutters on the roof are clear for maximum drainage into the leader barrel. If you find any openings in your system where major debris can get in, it is to your benefit to cover them. Any junk that gets into a closed system is not coming out and can really plug things up. Another way to avoid this is to get barrels without tops and cover them all with screens to keep bugs from breeding. Other than that, the only thing you would need to do is drain it out completely in the winter; if you live in an area where it freezes you know why.

Links to this series: Part 1, Part 2, Part 3

If you have any suggestions or would like to link your own rain harvesting system, please feel free to do so in the comment section of this post.

Cheers,
Kelly and Meg
